Palletline Birmingham
LED Warehouse Conversion
Like for Like Running Costs
Energy/Running cost saving of £44,742 p/a
- (your current running costs are approx £103,596. £1012 p/a replacement lamps)
- Estimated energy use of 98550w v EcoFX 56950w saving 41600w
Eco-FX Energy/Running cost £59,865 p/a
- (approx payback 3 years including cost of NEW LED luminaires) Based on £0.12p per KWh
- Based on 241 luminaires in surveyed warehouse
Benefits
On close inspection of the Birmingham site, we have identified the following benefits for converting to the Eco-FX LED proposal:
- Running cost saving approx £44,742 p/a (your current running cost approx £104,607 p/a inc. replacement lamps)
- Increase lamp life to 50,000hrs = Reduced Maintenance factor
- Reduced lamp replacement (LED lamp life 6yrs based on 24hrs per day)
- Approved product template can be rolled out across all refurbished sites
- 3 Year pay back on an LED conversion (plus 3 years additional life)
- 3 Year warranty
- Current SON fitting lamp life 20,000hrs based on 50% light output - Eco-FX 50,000hrs based on 70% light output
Internal Floodlight
Exterior Floodlight
Product Benefits

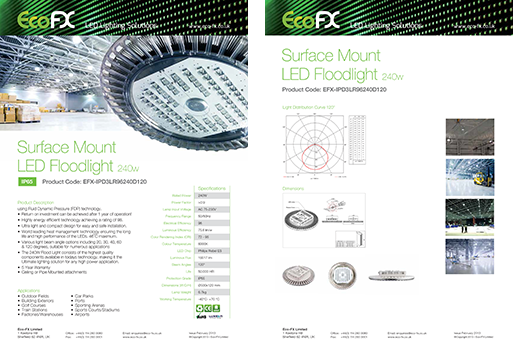

Internal - Surface Mounted LED Floodlight 240w (IP65) 18517lm
External - LED Floodlight 200w (IP65) 16301lm
- Revolutionary FDP (Fluid Dynamic Pressure) Heat Pipe Technology Immediate extraction of heat from the LEDs - Provides longer LED life
- NET (New Excellent Technology) Certified
- NEP (New Excellent Product) Certified
- Increase lamp life to 50,000hrs = Reduced Maintenance factor
- Weight per product only 6.7 kilos

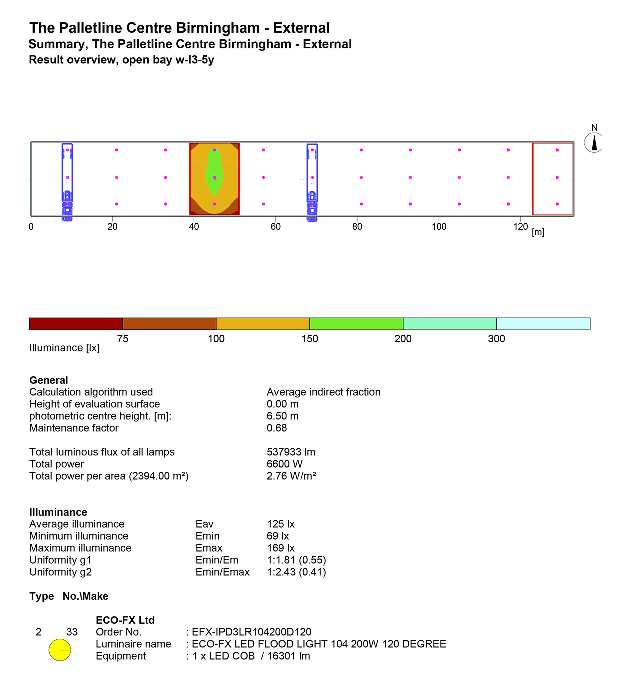

The Palletline Centre Birmingham - External
Calculation results, The Palletline Centre Birmingham - External
3D luminance (raytracing), Variable view
